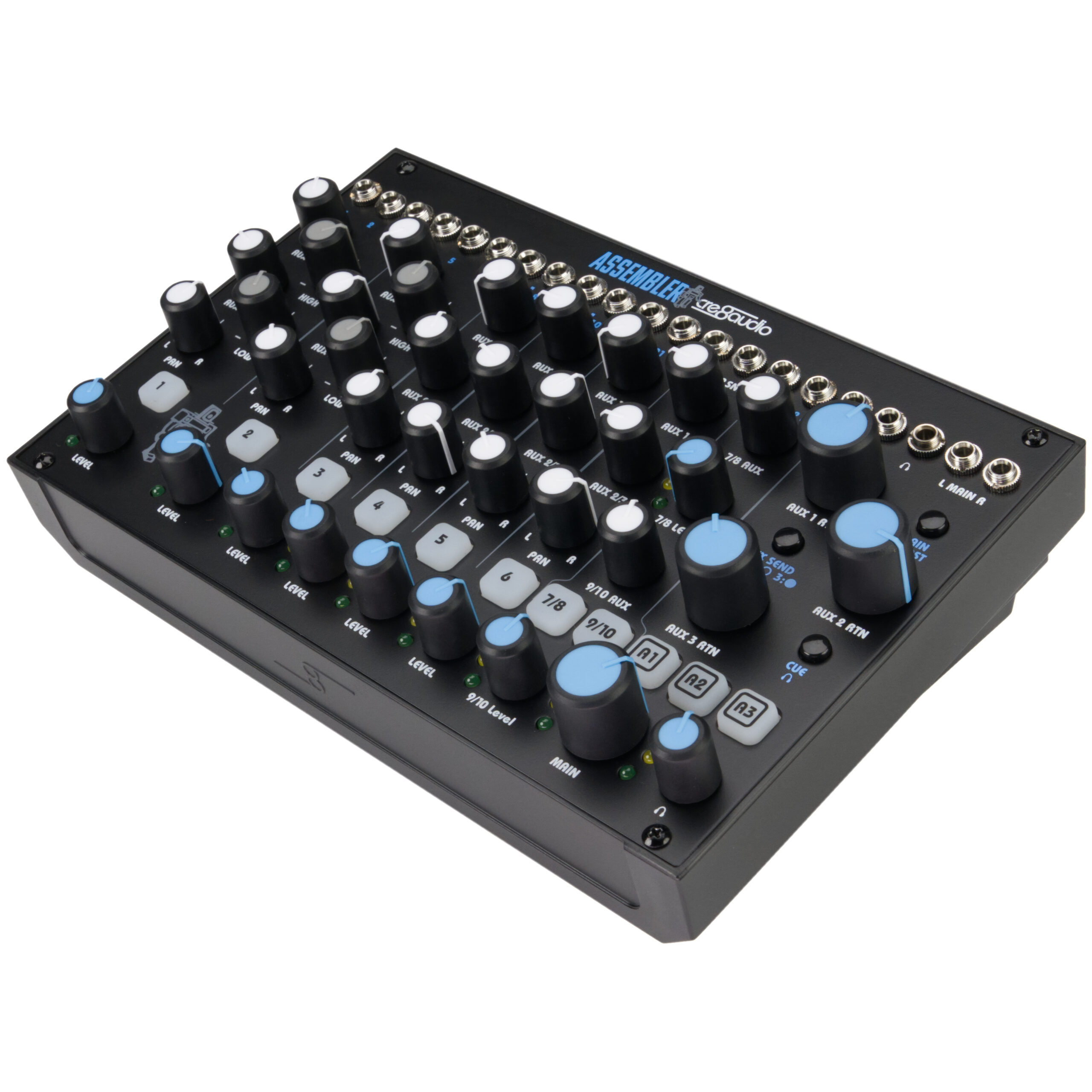

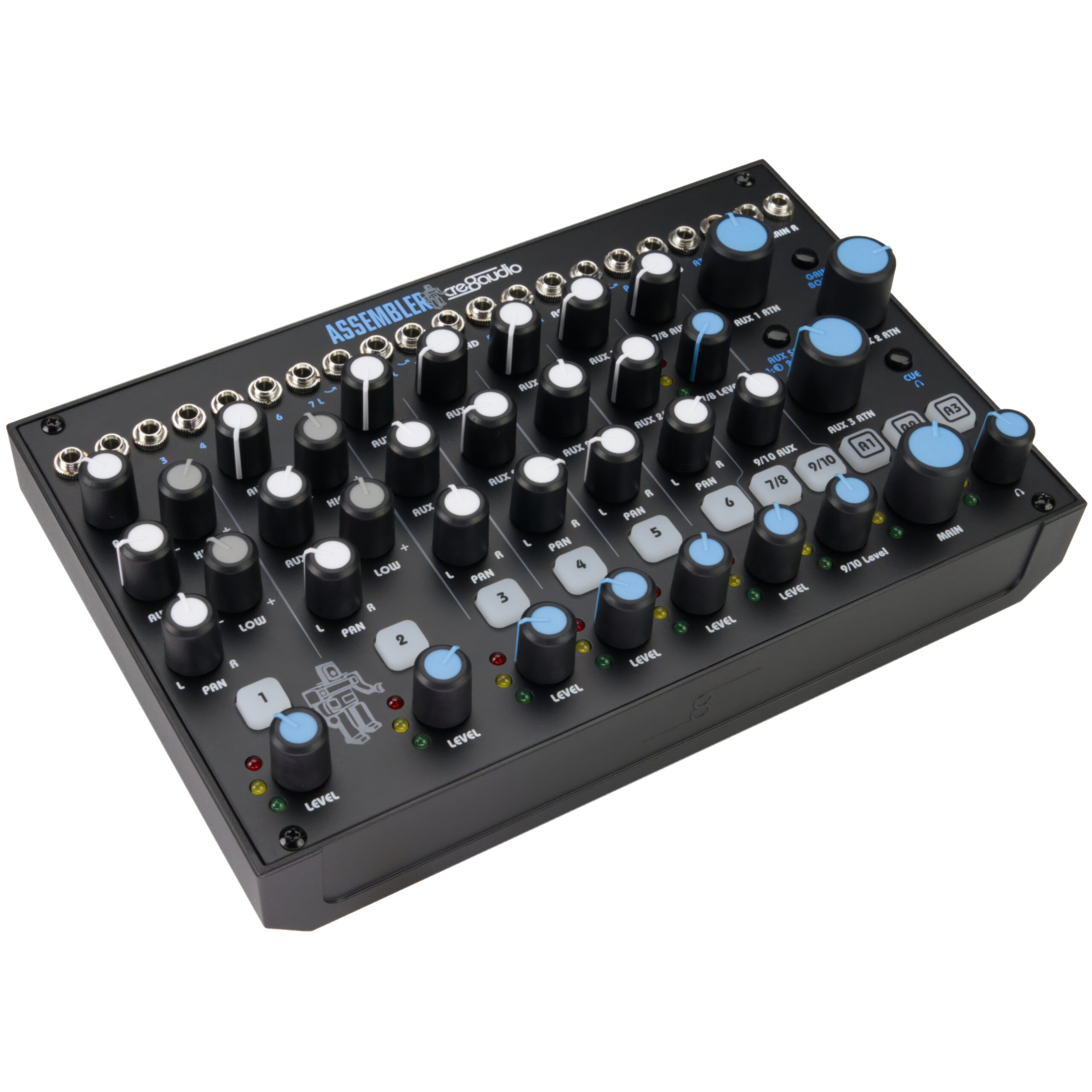

Cre8Audio – Assembler

Vintage Analogue Audio Mixer

Key features:

• Audio channels: 10
• 2 complex mono channels: Vintage-inspired EQ, up to 20x gain, two aux sends (1 assignable), pan, mute, assignable cue monitoring, 3-stage LED display, analogue tape saturation
• 4 standard mono channels: Up to 20x gain, two aux sends (1 assignable), pan, mute, assignable cue monitoring, 3-stage LED display, analogue tape saturation
• 2 stereo channels: Up to 20x gain boost, assignable aux send, pan, mute, assignable cue monitoring, 3 stage LED meter, analogue tape saturation
• 3 aux sends: mono, post-fader
• 2 stereo aux returns: up to 2.7x gain, mute, assignable cue monitoring, analogue tape saturation
• 1 mono aux return: up to 2.7x gain, mute, assignable cue monitoring, analogue tape saturation
• Independent main and cue output levels
• Eurorack and line level compatible
• Can be used independently in the supplied housing or removed and used as a module in Eurorack format

Technical data:

• Specifications for use as a Eurorack module
• Width when used as a module = 40hp
• Depth = 30mm
• 380mA current consumption when operated with +12V rail
• 275mA current consumption when operating with -12V
• Protection against reverse polarity of the power supply.
• 207mm x 138mm x 61mm
• 845g

Scope of delivery:

• Included in delivery - 1x assembler, 1x power supply unit, 1x 3.5mm to 5 pin (type ‘A’) MIDI Din pigtail
