Description

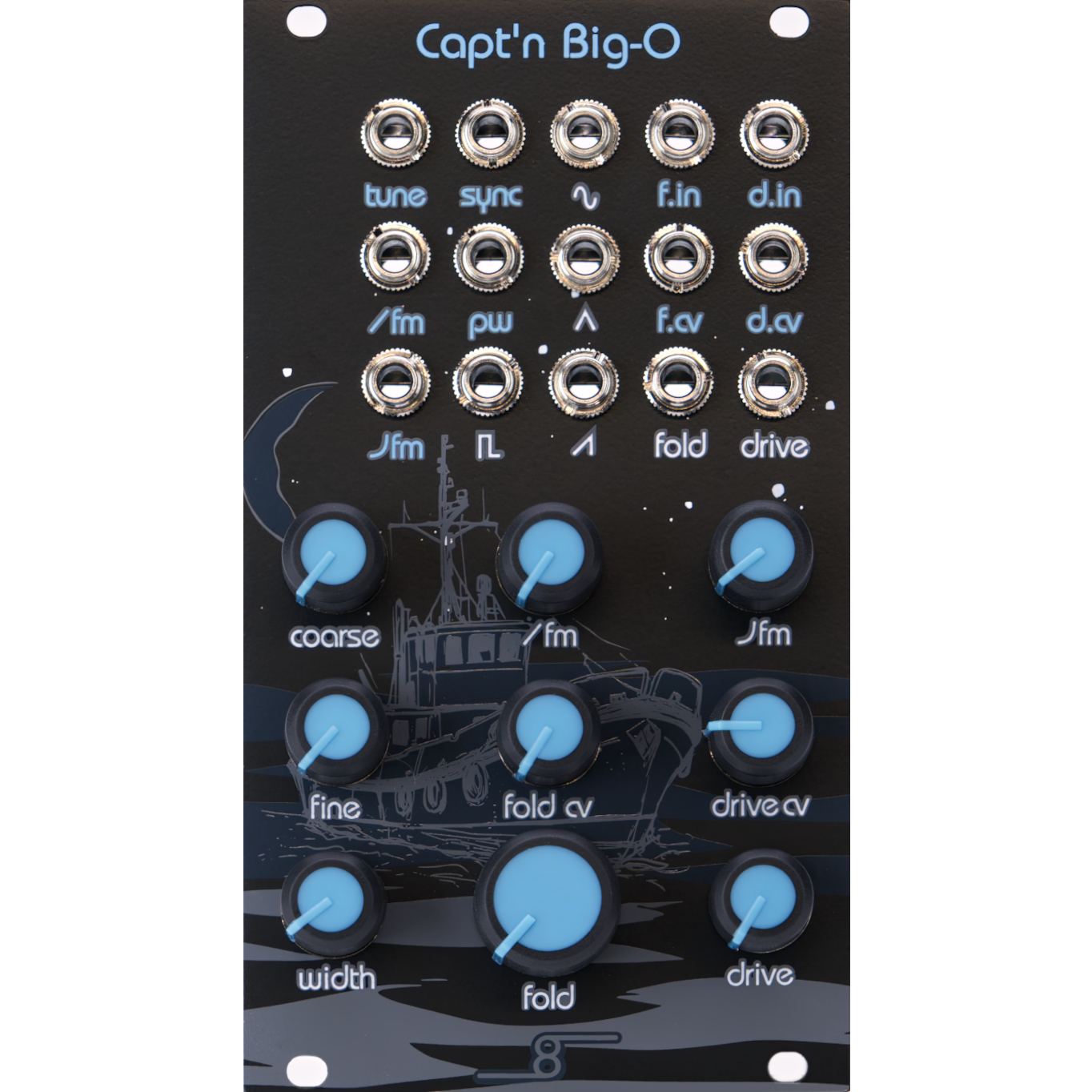

Capt’n Big-O is an analog VCO waveshaping synthesizer module for all Eurorack systems. The Capt’n was designed in partnership with the very serious folks at Pittsburgh Modular Synthesizers. It has 100% analog components, no oscillator on a chip here.
cre8audio Capt’n Big-O specifications:
-
Width = 14 hp
-
Depth = 26 mm
-
100% analog, original design (not an oscillator on a chip)
● Waveforms – sine, triangle, saw, and square
-
Wave folder/waveshaper:
○ routed by default to sine but patchable to any waveform or external source
-
Drive circuit – essentially a 75x overdriven VCA (5V output)
-
Linear and exponential frequency modulation (FM)
-
Hard sync
-
Pulsewidth modulation
-
120mA power draw when running +12V rail
-
108mA power draw when running -12V rail
-
Frequency range of oscillator:
○ full range – LFO through audible spectrum
-
Input voltage range of oscillator = -10V to +10V
